Specs

Model:

BLRTSX184F-A

Item #:

170257

American:

19 - 184 lbf.ft

S.I.:

25 - 250 N.m

Metric:

2.6 - 25.4 kgf.m

Input Drive:

3/4 F/Sq

Output Drive:

3/4 M/Sq

Tool Length:

5.3

Tool Width:

2.3

Tool Height:

Cal Cert Options Data Set:

Supplied with a Free ISO 17025 Certification of Calibration

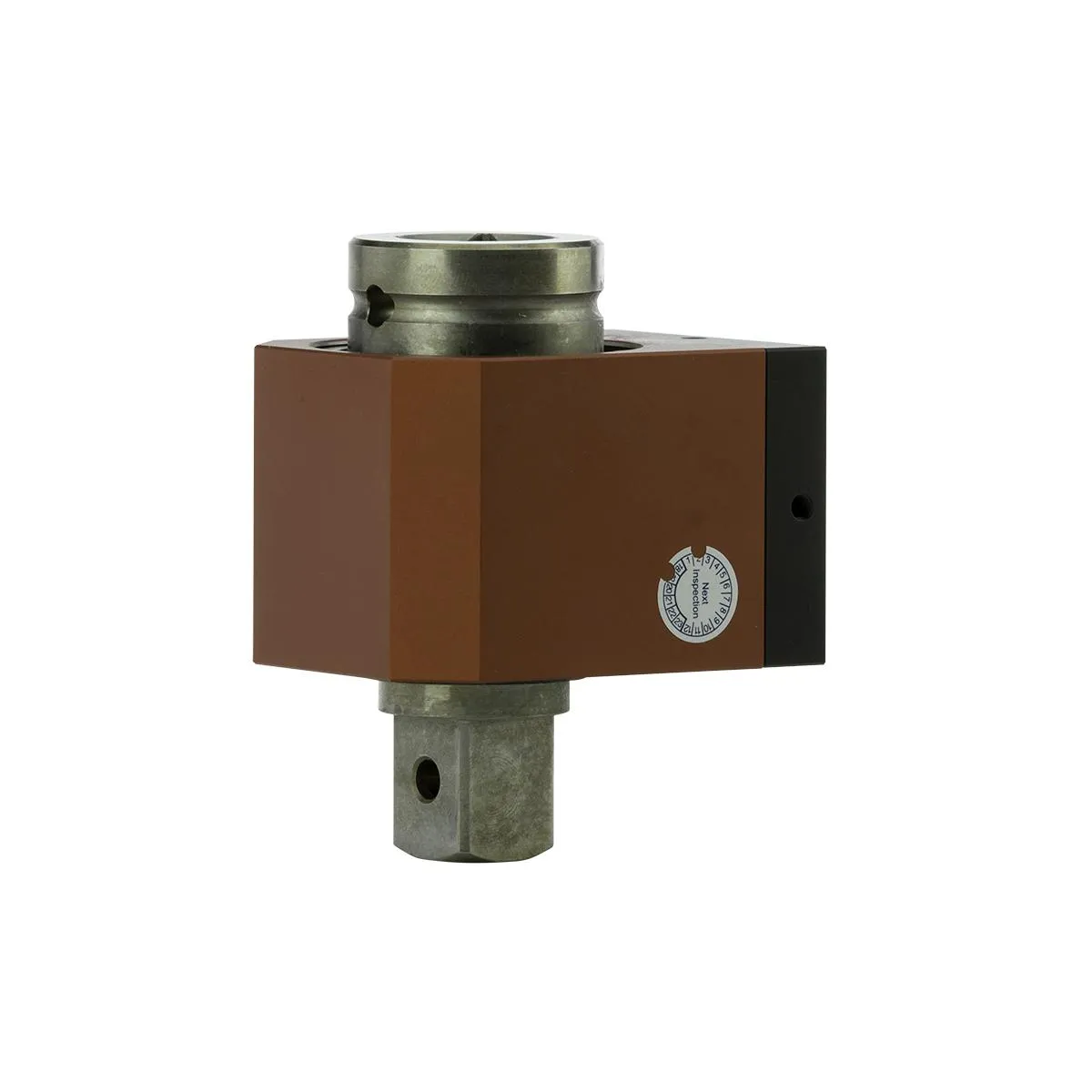

The Mountz brushless rotary torque & angle sensors an ideal torque-measuring solution for applications where accuracy and reliability rank paramount. Can be used for testing real-time torque or for checking the breakaway torque (first movement) of a fastener.

Accuracy ± .2% of full scale

Non-contact signal transfer and maintenance free.
Angle Output: 2-channel quadrature, 360 pulses per rotation.
Ability to measure the rotation angle of a fastener. Joint rate & breakaway torque can be measured too.
The common brush bounce that plagues the accuracy testing of is cured when using a brushless rotary transducer.
Compact design & bi-directional.
For use with most power tools, high RPM tools, or rotational measurement applications.
Features ARCII technology, an instant auto-recognition system of the BLRTSX-A connected to the or .

This is the stand alone accuracy statement for the BLRTSX -A torque sensor. When the torque sensor is coupled with a Mountz torque analyzer, there is a system accuracy. Review the system accuracy listed with each torque analyzer ( or ).

WARNING! Not recommended for impact wrenches.
