Specs

Model:

RTSX10i-HA

Item #:

170213

American:

1 - 10 lbf.in

S.I.:

11.3 - 113 cN.m

Metric:

1.2 - 11.5 kgf.cm

Input Drive:

1/4 M/Hex

Output Drive:

1/4 F/Hex

Tool Length:

Tool Width:

1.1

Tool Height:

Cal Cert Options Data Set:

Supplied with a Free ISO 17025 Certification of Calibration

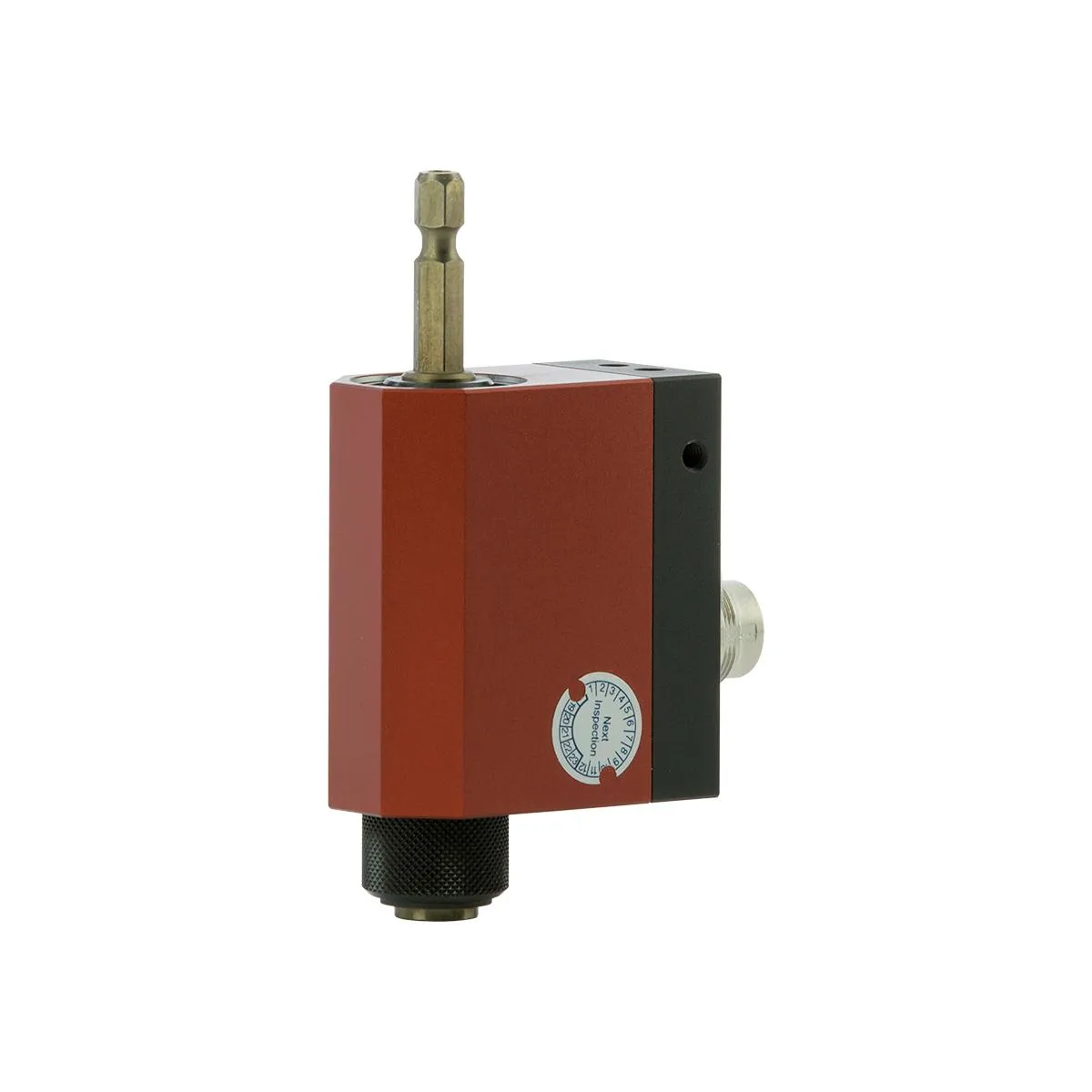

The Rotary Torque & Angle Sensor is the ideal torque-auditing tool for testing the actual torque being applied on the assembly application. By connecting a rotary torque sensor between an electric or pneumatic tool and an assembly application, you can monitor the torque being applied from the tool to the fastener or bolt.

Accuracy ± .25% of full scale

Ability to measure the rotation angle of a fastener. Joint rate & breakaway torque can be measured too.
Angle output: 2-channel quadrature, 360 pulses per rotation.
Bi-directional.
For use with most power tools and rotational measurement applications.
Features ARC II technology, an instant auto-recognition system of the RTSX-A connected to the and .

This is the stand alone accuracy statement for the RTSX-A torque sensor. When the torque sensor is coupled with a Mountz torque analyzer, there is a system accuracy. Review the system accuracy listed with each torque analyzer ( or ).

WARNING! Not recommended for impact wrenches.
